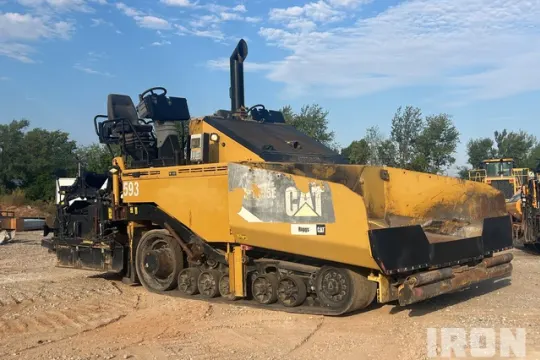

2014 Cat AP1055E Track Asphalt Paver

Dual Controls

Cat Electric Heated 10 ft - 20 ft Screed

18 in Rubber Tracks

Engine Power: 225 hp

Operating Weight: 44,090 lbs

Fuel Capacity: 66 gal

Paving Width: 10 ft - 19.6 ft

Paving Thickness: 12 in

Hopper Capacity: 250 cu ft

Transport Width: 10.5 ft

Transport Height: 12.1 ft

Transport Length: 21 ft

Engine Model: Cat C7.1 ACERT

Emission Standards: EPA Tier 4 Final

Serial Number / VIN: CATAP105CTJF00407

Hour Meter / Odometer: 7139 hrs

Exterior Lights: Operational

Horn: Operational

Seat Belts: Operational

Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.

Warning Lights: Operational

Screed Control Switches: Operational

Gauges: Operational

Limited Function Check: The main components are in place and operational as noted.

Blow-by (subjective visual observation): Minor

Starter: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Transmission: Operational

Limited Function Check: The drivetrain was operational.

Screed Extension Cylinders: Screed extension inoperable

Screed Vibrators: Unable to operationally check

Limited Function Check: The hydraulic system was operational.

Screed Serial Number: Serial Number: DWM00457

Screed Heaters: Not operationally checked

Screed Slope Adjustment: Not operationally checked

Screed Crown Adjustment: Not operationally checked

Screed Tow Point Adjustment: Not operationally checked

Mat Thickness Adjusters: Not operationally checked

Extension Tubes: Screed would not extend

Spray Down System: Not operationally checked

Limited Function Check: The main components were operational in a limited check., Screed would not extend

Left Rubber Belt Drive Lugs: No visible damage

Right Rubber Belt Drive Lugs: No visible damage
